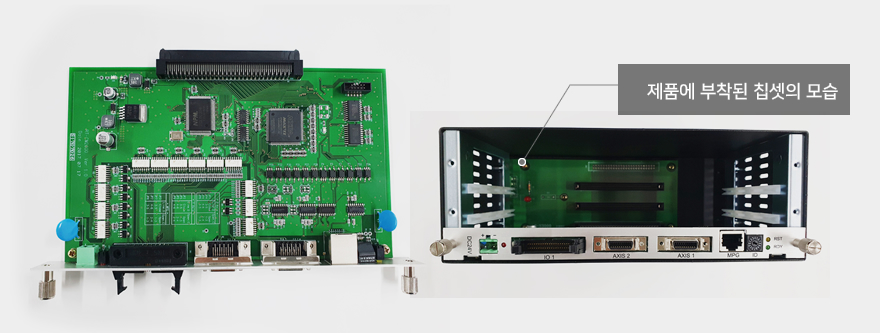

| HOME > Product > RT-CM2000 |
 |
| |
|
| |
 |
본 제품은 스텝모터 또는 서보모터(펄스 타입)를
다양한 명령으로
고속으로 제어하는 컨트롤러입니다. |
|
| |
 |
|
| |
 |
| Number of control axes |
2axes
|
| Reference clock
|
19.6608MHz
|
| Positioning control range
|
-134,217,728 ~ 134,217,727 pulses (28 bits)
|
| Ramping-down point setting ranage
|
0 ~ 16,777,215 pulses (24bit)
|
| Speed setting step range
|
1 ~ 65,535(16-bits) |
| Acceleration/deceleration characteristics
|
Linear and S-curve, 가속구간과 감속구간 분리설정
|
| Ramping-down point automatic setting
|
가감속 동기화 사용시 가능
|
| Feed speed automatic correction function
|
Automatically lowers the feeding speed for
short distance positioning is lowered. |
| Manual operation input |
Manual pulse generator input, external switch input |
Inerpolation functions
|
Linear Interpolation / Circular Interpolation |
| Counter |
COUNTER 1: Command position counter(28bit)
COUNTER 2: Mechanical position counter(28bit)
COUNTER 3: Deflection counter
COUNTER 4: General-purpose counter(28bit) |
Operating temperature
|
-5 ~ 85 도 |
| Dimmension |
|
| |
|
|
 |
| Bus Interface |
ISA Compliant (16bit)
|
Command Pulse Type
|
EA/EB Line drive, CWP-CWN/CCWP-CCWN pulse, Pulse + Dir
|
External Encoder
|
EA/EB Line drive input (DC 5V), 90-degree phase difference
|
Mechanical limit/Switch signal input pins
|
+/- ELS, SD and ORG
|
Servomotor interface I/O pins
|
SV_ON, RDY, INP, ALM
|
| Pulsar signal input pin |
PA/PB Line drive input (DC 5V)
90-degree phase difference |
Simultaneous start/stop signal I/O pins
|
CSTA/CSTP/CSD/CEMG
|
| GPIO |
IN16, OUT16 |
| |
|
|
|
|
